SCHUNK highlights its clamping and gripping capabilities at ACMEE 2016
SCHUNK, the competence leader for clamping technology and gripping systems is showcasing its range of clamping and tool holding devices at the on going ACMEE 2016. The company is highlighting its flagship products VERO-S, the modular quick-change zero point pallet system and TENDO E, Hydraulic Tool Holder apart from range of other products like robotic accessories & gripping systems, Vise, fixture, lathe chuck, modular assembly automation, tool changer, utility coupler, among others. The event is scheduled from June 16-20, at Chennai Trade Centre, Chennai.

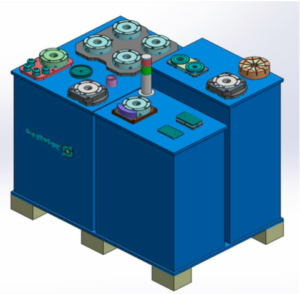

VERO-S, the modular quick-change zero point pallet system
Quick-change pallet system for extremely fast re-setting of work pieces, clamping devices or other equipment on modren 3-, 4- or 5-axis machining centers. Lengths of pipes, shafts, and other small parts can be precisely clamped with the SCHUNK VERO-S
SEZ within a very short time, and can be machined from five sides with an optimal accessibility. The same applies for unstable workpieces with a short shank.
Since the system can be quickly made ready for use, it is particularly suitable for machining individual pieces, small series such as plungers and ejectors in tool and mold making. First of all, the comparably light but robust collet chuck module is put onto an existing SCHUNK VERO-S quick-change module, is equipped with a workpiece, and then the pull-down jaw system is activated. This ensures a maximum clamping precision, great dimensional stability, and an adjustable depth stop provides for a great repeat accuracy. Coolant is discharged through an integrated drain. Since the system can be used together with all common ER collet chucks, it provides a maximum degree of flexibility to the users. The SCHUNK VERO-S SEZ collet chuck modules are available for SCHUNK VERO-S NSE plus 138-V1 (ER 32-120 and ER 40-120), and VERO-S NSE mini 90-V1 (ER 25-100) quick-change pallet modules. The clamping diameter amounts from 2 to 20 mm (ER 32-120), 3 to 26 mm (ER 40-120), or 1 to 16 mm (ER 25-100). The maximum clamping depths is 96 mm (VERO-S SEZ), or 85 mm (VERO-S SEZ mini).

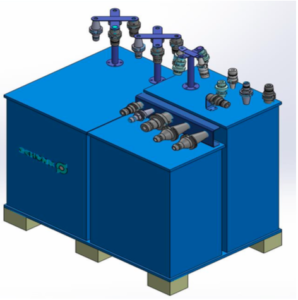

TENDO E, Hydraulic Tool Holder
- Highest clamping Torque tool holders; (Clamping torque up to 900 Nm for dia 20mm clamping bore, 2000Nm for dia 32mm clamping bore)
- Universal Application: – High volume machining, Thread milling, Drilling, Reaming & Tapping applications.
- Permanent run out accuracy< 0.003mm.
- Excellent vibration dampening.
- Improves tool life by 40%.
- Tool changes within seconds by using simple Allen key.
- Versatile clamping range due to intermediate sleeves.
- Tools can be set precisely, due to axil length adjustment facility.
- Option with radial length adjustment facility.
